Belt Filter Press
Sludge Dewatering System
Compact Solution for Automated Sludge Dewatering
FRC’s stainless-steel belt press reduces sludge volume with stacked dewatering zones and continuous belt cleaning for low-maintenance operation.

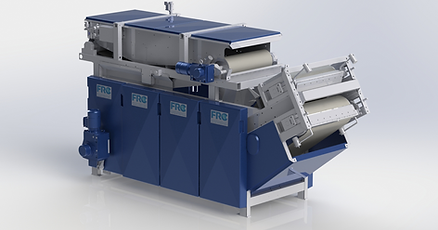

The FRC Belt Filter Press is a high-throughput, automated dewatering system designed to reduce sludge volume and handling costs in industrial and municipal wastewater treatment. With a compact, vertically stacked design, this press delivers consistent, dry sludge cakes with minimal operator intervention—making it ideal for facilities processing oily, fatty, or particulate-rich sludge.
Conditioned sludge enters the belt press and moves through a series of dewatering zones. It first passes through the gravity drainage zone, where free water drains out. Then it moves into a wedge zone and is gradually compressed between two belts. In the final stage, high-pressure rollers extract the remaining water, producing a dry sludge cake. The belts are continuously cleaned with automated spray bars, allowing for consistent, unattended operation and reduced maintenance.
Key Features
Vertically stacked gravity and pressure zones for space efficiency
Continuous dewatering with automated belt cleaning
Stainless-steel construction resists corrosion in harsh environments
Available in widths from 0.5 to 3.0 meters
Integrated control system with HMI and PLC
Compatible with flocculators, polymer systems, and wash water modules
Specifications
Flow Capacity: Up to 350+ GPM
Effective Belt Width: 24” – 120” (600 – 3,000 mm)
Effective Dewatering Area: 35 – 388 sq. ft. (3.3 – 36 m²)
Construction: Stainless steel (304, 316, duplex)
Components: Sludge inlet, thickening belts, roller assembly, spray bar, cake discharge chute
Applications
Municipal wastewater sludge
Food and beverage plant residuals
Pulp and paper processing
Industrial and chemical manufacturing
DAF float and clarifier sludge dewatering
Why choose a belt filter press?
FRC’s belt press is a proven, efficient solution for high-volume sludge dewatering. It combines compact footprint, robust construction, and fully automated operation—minimizing water, energy, and labor costs while delivering consistently dry sludge cakes.
Belt Press FAQ
Q: What type of sludge is the belt press best for?
A: It’s ideal for oily, fatty, or particulate-rich sludges from food & beverage, municipal, and industrial treatment systems.
Q: How is belt cleaning handled?
A: The system includes automated spray bars for continuous belt cleaning during operation.
Q: Is this system scalable?
A: Yes, with widths from 0.5 to 3 meters and full auxiliary system compatibility, it scales easily to match sludge volume.
