Rental and Pilots
With the largest Dissolved Air Flotation (DAF) rental fleet in the US and equipment ranging from 10–3,000 gpm, we can tailor a solution to your needs. All FRC rental equipment is available for short-term and long-term rental agreements as well as pilot testing and long-term lease agreements.
FRC rental systems and stand-alone equipment are installed in a “plug-and-play” configuration for ease of installation and start-up. Once in place on-site, the unit can be operational within a matter of hours.
Our Rental and Pilot Services Include
Large Rental Fleet
FRC’s rental system fleet includes the following:
- Stand-alone DAF for applications greater than 100 GPM
- Flocculator
- Chemical Dosing System
- DAF fully skidded system for applications less than 100 GPM
- Dissolved Gas Flotation (DGF) fully skidded system
- Corrugated Plate Interceptor (CPI) fully skidded system
- Rotary drum screen fully skidded system
- Belt press fully skidded system
![Large-Fleet Large-Fleet](https://www.frcsystems.com/wp-content/uploads/bb-plugin/cache/Large-Fleet-square-7cb80edcb02c0b2a2c8cfcde753d8689-61043b2a32625.jpg)
![Engineering-Support-Team Engineering-Support-Team](https://www.frcsystems.com/wp-content/uploads/bb-plugin/cache/Engineering-Support-Team-square-3c4e7e4b576a0d89c36dd43083ad736f-61043b61570e5.jpg)
Engineering Support Team
FRC has a full team of field, process, and pilot engineers to support the start-up of the rental systems, and of course remote field support. Available services include the following:
- Installation inspection prior to commissioning
- Commissioning and start-up
- Operators training
- Remote support
Our Available Rental Systems
Stand-Alone DAF Systems
- Pre-piped and pre-wired system supported on an SS304 skid
- DAF (SS304)
- Sludge level probes installed in DAF sludge hopper
- AOD sludge pump
- E-panel including PLC & HMI
- Additional components shipped loose
- Catwalk (OSHA compliant, SS304) for DAF access
- Air compressor
- Polymer makeup system
- Job box (tools, spare parts, etc.)
![Stand-Alone-DAF Stand-Alone-DAF](https://www.frcsystems.com/wp-content/uploads/bb-plugin/cache/Stand-Alone-DAF-square-af3381fdc12f150043ca191d15407429-61043bb65fc7e.jpg)
![Flocculator Flocculator](https://www.frcsystems.com/wp-content/uploads/bb-plugin/cache/Flocculator-square-4b3d5454cd769aaa6a82d6330b2e7e7a-61043be378314.jpg)
Flocculators
- Supported on an SS304 skid
- pH transmitter
- Sampling ports strategically installed after:
- The inlet of flocculator (raw sample)
- Coagulation
- Flocculation
- DAF whitewater injection into flocculator
Chemical Dosing System Skids
- Pre-piped and pre-wired system supported on an SS304 skid
- Flow meter
- Coagulant dosing pump
- Acid dosing pump
- Caustic dosing pump
- Polymer dosing pump
- Automatic polymer makeup system
- NEMA 4X (SS304 enclosure) e-panel including PLC & HMI
- Ethernet cable provided to communicate with stand-alone DAF e-panel
![Chemical-Dosing-Skid Chemical-Dosing-Skid](https://www.frcsystems.com/wp-content/uploads/bb-plugin/cache/Chemical-Dosing-Skid-square-7f940e837218df2d9d1b2cd33dcc1d37-61043bf91f968.jpg)
![DAF-Fully-skidded-system DAF-Fully-skidded-system](https://www.frcsystems.com/wp-content/uploads/bb-plugin/cache/DAF-Fully-skidded-system-square-9921a4d738a88d4c52951574db165376-61043c034442e.jpg)
DAF Fully Skidded Systems
- Pre-piped and pre-wired system supported on an SS304 skid
- DAF (SS304)
- Flocculator (PVC or CPVC)
- Flow meter
- Chemical dosing pumps for coagulant, acid, caustic, and polymer
- Sludge level probes installed in DAF sludge hopper
- AOD sludge pump
- E-panel including PLC & HMI
- Additional components shipped loose:
- Rotary lobe feed pump
- Air compressor
- Polymer makeup system
- Job box (influent and effluent hoses, tools, spare parts, etc.)
CPI Fully Skidded Systems
- Pre-piped and pre-wired system supported on an SS304 skid
- CPI (SS304)
- E-panel including PLC & HMI
- Additional components shipped loose
- Rotary lobe feed pump
- Air compressor
- Polymer makeup system
- Job box (influent and effluent hoses, tools, spare parts, etc.)
![CPI-Skid CPI-Skid](https://www.frcsystems.com/wp-content/uploads/bb-plugin/cache/CPI-Skid-square-25ac44c956e803bc9c862f0edc6175b4-61043c0aa48a6.jpg)
![Rotary-Drum-Screen Rotary-Drum-Screen](https://www.frcsystems.com/wp-content/uploads/bb-plugin/cache/Rotary-Drum-Screen-square-4159e46f168888fedd44aa74ab234b52-61043c1596dba.jpg)
Rotary Drum Screen Fully Skidded Systems
- Pre-piped and pre-wired system supported on an SS304 skid
- Rotary drum screen (SS304)
- 020” Wedgewire Openings (SS304)
- 030” Wedgewire Openings (SS304)
- 4mm Perforated Openings (SS304)
- Effluent buffer tank (SS304) with level transmitter
- Flow meter
- Isolation valve
- Catwalk (OSHA Compliant, SS304) for screen access
- E-panel including PLC & HMI
- Additional components shipped loose
- Rotary lobe feed pump
- Rotary lobe effluent pump
- Job box (influent and effluent hoses, tools, spare parts, etc.)

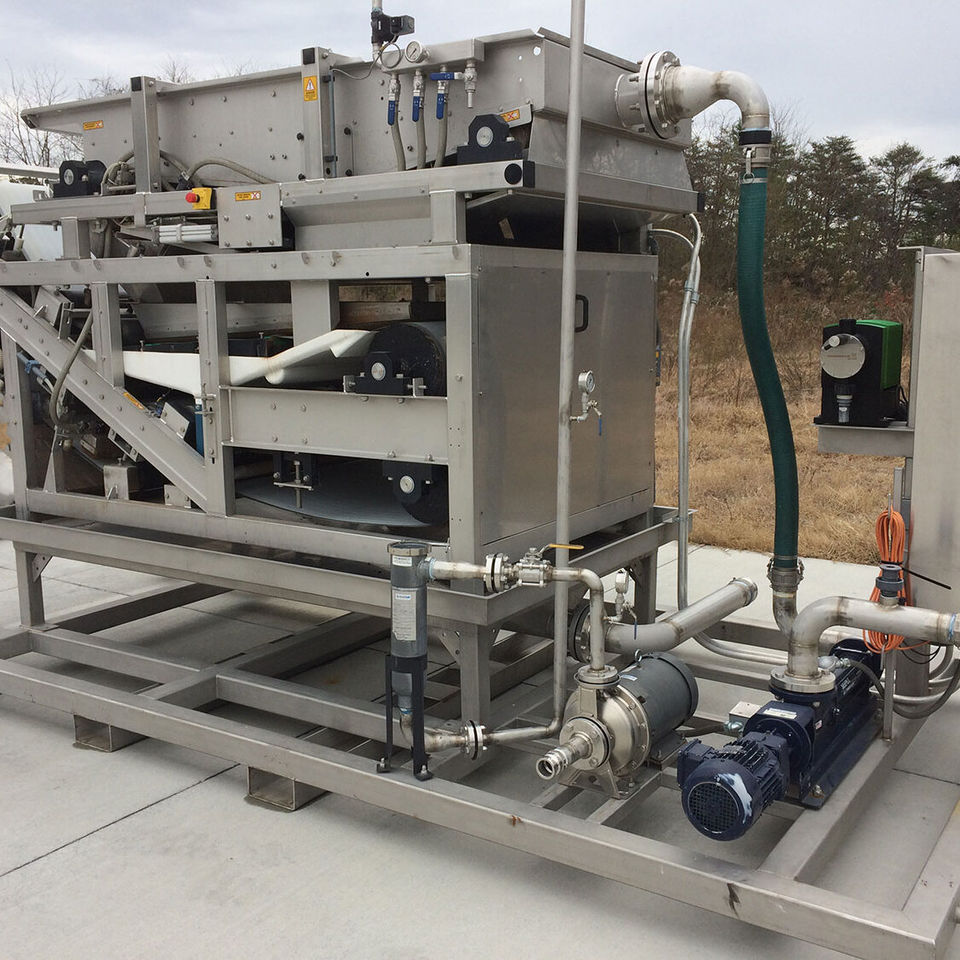

Belt Press Fully Skidded Systems
- Pre-piped and pre-wired system supported on an SS304 skid
- Belt press (SS304)
- Bed and tray
- Progressive cavity feed pump
- Polymer dosing pump
- Wash water pump
- Wash water bag filters
- Wash water tank (SS304) with level sensor
- 2 ft3 self-dumping hopper
- E-panel including PLC & HMI
- Additional components shipped loose
- Polymer makeup system
- Job box (influent and effluent hoses, tools, spare parts, etc.)
![Belt-Press Belt-Press](https://www.frcsystems.com/wp-content/uploads/bb-plugin/cache/Belt-Press-square-5182392598ca1a581a386e2020a98306-61043ae316184.jpg)
